4Pair 8PCS Undermout Drawer Slides 12 15 18 21 Inch Bottom Mount Soft Close Drawer Slides Full Extension Concealed Drawer Rails/Mounting Screws,Locking Device and Brackets,80 LB Load Capacity 15" Description Item model number under-4 Part Number under-4 Batteries Required? No Number of Items 8 Mounting Type Bottom Mount Item Package Quantity 4 Color Silver Product Dimensions 15"L x 2.16"W x 2.16"Th Material Alloy Steel Country of Origin China Weight Limit 85 Pounds Item Weight 19.26 pounds Batteries Included? No Drawer Type undermount drawer slides Maximum Weight Capacity 85 Pounds Size ‎15inch-381mm Included Components 4 pair of bottom mount drawer slides,mounting screws,adjustable locking device

• [4 pairs Under Mount Drawer Slides]- 4 pair(8 pieces) of 15 inch undermount drawer slides.And each pair match with 12pcs screws,adjustable locking device, mounting screws, instructions. Undermount Drawer Slides are fit all drawrs with Face Frame or Frameless Cabinets. Such as cabinetry, desk pedestals,office,drawers TV cabinet,beside tables and general storage drawers.
• [Material]: All of the drawer slides producd by JI2OOYI are made from high-grade cold rolled steel with electrom zinc plated finish makes precise thickness and smooth surface. Soft close function creat less noise when it's opened and closed.

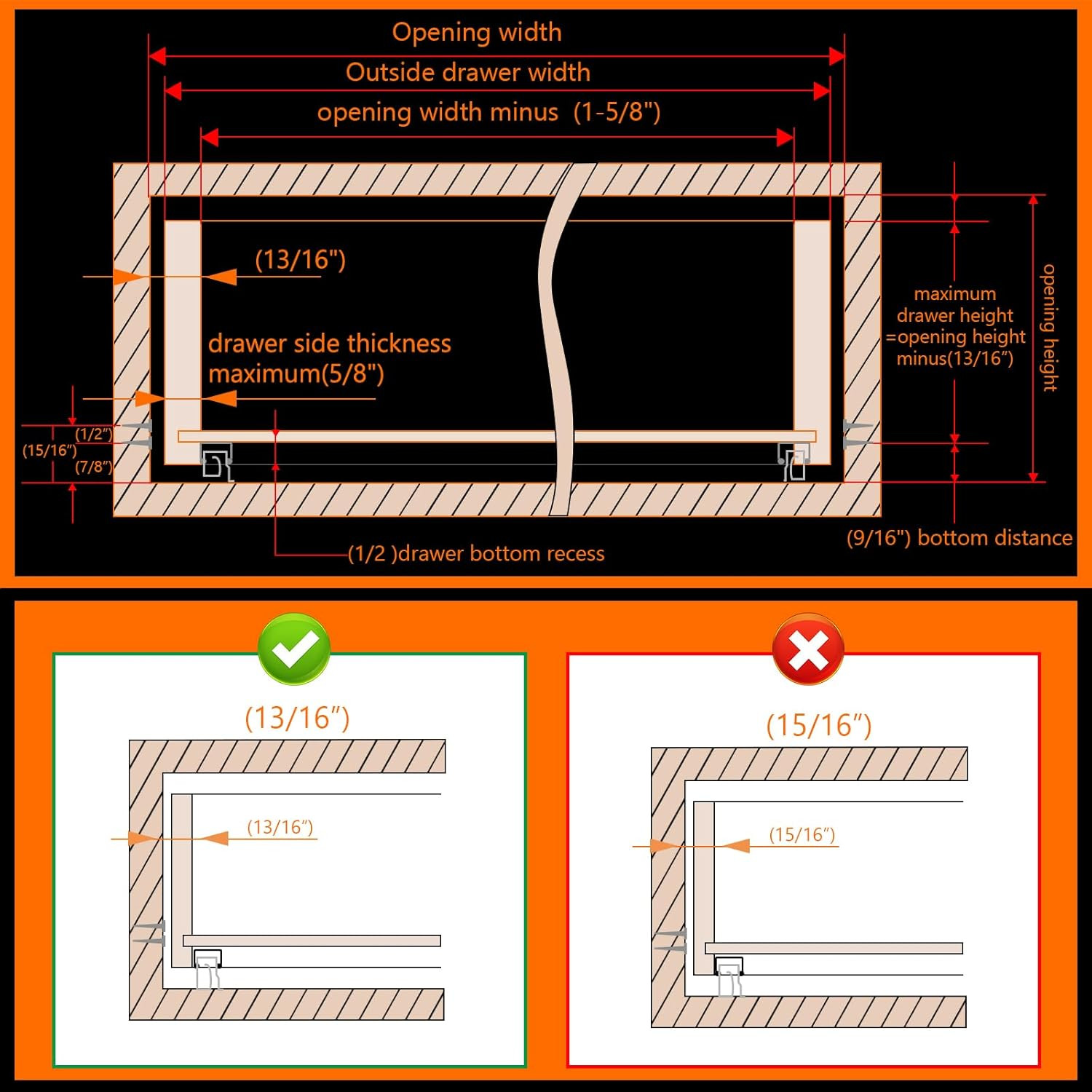

• [Measurement]:15"(381mm) under mount soft close drawer slide,inside cabinet length(min):416mm,inside cabinet length(max):436mm.Load Capacity: 85LB.The maximum thickness of the side panel of the applicable drawer is 16mm (5/8″)(not recommended for 3/4 inch material.). Clearance between slides with cabinet: 20mm (0.78inch)- 40mm (1.58inch).
• [3-fold full extension]- Slides Width: 2.16" (55mm)--length:15" (381mm)--Fully extended length:27.6"(700mm) .our 3 fold full extension drawer design allows for easy and clear access to your belongings. Three-stage stretching can pull out the drawer completely.Make full use of your drawer space.
• [Undermount Drawer Slides]:With a adjustable locking device and metal plate makes installation simple and easy to clean.Drawer slides are placed on the bottom of the drawer,and screws are mounted on both sides of the cabinet.Suitable for American-style cabinets.Just hold the two locking device with both hands at the same time,the drawer can be easily taken out.

Product Description JI2OOYI Undermount Drawer Slides 12 15 18 21 inch Soft Close Full Extension

Undermount drawer slides 4 pairs(8pcs),And match with 12pcs screws each pair.

Our drawer slides are available in 12inch, 15inch,18inch,21inch.

Can be applied to:American-style cabinets,Such as cabinetry, desk pedestals,office,drawers TV cabinet,beside tables and general storage drawers.

JI2OOYI Bottom Mount Soft Close Drawer Slides

Ensure the selected size < the drawerlength,

Reserve 0.5 " ofspace for mounting on both sides.

Suitable for drawer depth of 10" - 22"

Bottom mount Drawer Slide

• Material: High-quality Cold-rolled Steel
• Finished:Zinc Plated
• Mouting Method:Under Mounting
• Thick/Side Clearance:12.5mm(1/2inch)

lnstall and Disassemble Easily

Make sure the slides are leveled during the installation process

Place the base slides stay with the front edge of cabinet

Mount the screws in the permanent mounting holes

Adjust the inner member.Mount the screws in the permanent mounting holes

Details-JI2OOYI Drawer Slides SOFT CLOSE MECHANISM

Adopts a new copper hydraulic bufferdouble-spring structure, thus reducing noise when closing the drawer.

HOOKS FOR FIXING DRAWERS

The practical hook design makes the drawer more secure when opening and closing and prevents the drawer from sliding inward.

MULTI HOLES

The rails are positioned with multiple holes for sturdiness

Made of thick steel plate, high density, high strength, load-bearing capacity up to 45kg/100 lb.

ELECTROPLATE BLUE ZINC PLATING

The electroplated layer can prevent direct contact between the air and the track steel plate, thereby resisting oxidation and corrosion.

The drawer can be install and disassemble by the adjustable locking device easily.

it's convenient to take the drawer outfor installation or cleaning.
